Name: Smart Board School Teaching Interactive Whiteboard Electronic Touch Screen Digital Flat Panel 85 86 Inch Interactive Whiteboard
Brand: Shenyang E-Uniwill Tech Co., Ltd.
SKU: WS85MON-A01
Availability: InStock

Home Products 85 inch interactive whiteboard

Smart Board School Teaching Interactive Whiteboard Electronic Touch Screen Digital Flat Panel 85 86 Inch Interactive Whiteboard

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Whale Screens
Model Number:	WS85MON-A01

Contact Now

Detailed Product Description

Folded:	NO	Whiteboard Type:	Interactive Whiteboard
Warranty:	1 Year	Weight:	80KG
Size:	85, 86, 85/86 Inch	Operating System:	Dual System (Android And Windows)
Camera:	Optional	Color:	White, Black
ROM:	128GB, 32GB, 256GB, 512GB	Aspect Ratio:	‘16:9
RAM:	4GB, 8GB, 16GB	Storage:	32GB, 64GB, 128GB, 256GB
CPU:	Intel Core I3/i5/i7 (4th To 13th Gen)	Package Dimensions:	2080mm1280mm205mm
Writing Method:	Pen/finger Touch	Product Dimension:	1934.8mm1164.1mm89.6mm
Touch Points:	20-point Touch	Application:	Home, Office, Education, Conference, Advertising, Retail Store
Panel Style:	LCD	Contrast Ratio:	1500:1
Installation:	Wall Mount, Floor Mount	Target Audience:	Student, Teacher, Parent, Business Professional
Input Type:	USB, HDMI	Orientation:	Vertical
Screen Refresh Rate:	60Hz	Recommended Use:	School, Office, Restaurant, Gym, Home
Maximum Resolution:	3840X2160	Product Name:	Conference All-In-One Machine
Shell Material (face Frame/back Shell):	Aluminium Profiles/sheet Metal	Backlight Type:	D-LED
Brightness:	450cd/m²	System Type:	Android 13
Series:	For Business, For Home & Student,For Hospital	CPU Architecture:	A55*4
Power Supply:	100-240V, 50/60Hz	Certificates:	KC ISO9001 ISO45001 ISO14001 CE FCC ROHS

Dual system
Windows 7/10 operating system	CPU option: Intel Core i3/i5/i7 Memory stick optional: 4G/8G/16G/32G SSD optional: 128G/256G/512G/1024G
Android 11/13 operating system	Motherboard: 4-core/8-core RAM: 4G/8G/16G ROM: 32G/64G/128G/256G
Liquid crystal screen
Sizes	55/65/75/85/98/110 inch
OC Brands	BOE / TCL / AUO
Resolution	3840*2160
Luminance	≥500cd/m²
Screen contrast	4000:1
Response time	6ms
Pixel Pitch	0.4296 mm x 0.4296mm (H×V)
Frame rate	60 Hz
Viewing Angle	178°(H) / 178°(V)
Colour saturation (x% NTSC)	72 %
Colour Degree	1.07B(8bit)
Lifetime	50,000 hrs
Voltage	100 V ~ 240 V/AC, 50/60 Hz
Accompaniment Power	8Ω/10W*2
Front Interface	Switch button1 USB (shared)3 Type-c USB1 HDMI IN1 TOUCH_OUT*1
Environmental factors
Operating Temperature	0℃ ~ 40℃
Storage Temperature	-10℃ ~ 60℃
Operating Humidity	20% ~ 80%
Storage Humidity	10% ~ 60%
Maximum use time (hours*day)	18Hours*7days
Structure（75inch）
Net weight	54Kg±1.5Kg
Gross Weight	60Kg±1.5Kg(Heavy duty carton)
Bare unit size	1710mm1037.6mm89.6mm
Package Size	1850mm1150mm205mm(Heavy duty carton)
Shell Material	Aluminium profiles/sheet metal
Shell colour	Black/Grey/Silver

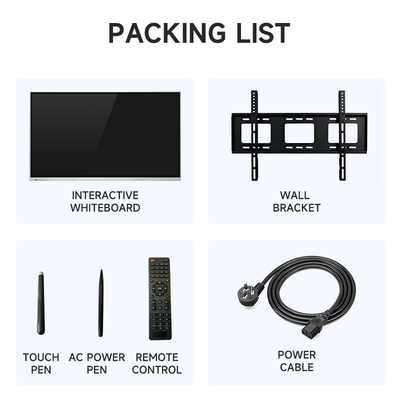

Accessories	Wifi Antenna4 Magnetic Pen2 Remote Control*1 Instruction Manual Certificate of Conformity/Warranty Card 1.5m Power Cord Wall mounting bracket
Touch parameters
Touch Specifications	Infrared touch frame
Glass specification	Plain glass/anti-glare toughened glass optional
Touch precision	90% centre area accuracy ±1mm, 10% edge area accuracy ±3mm
Touch Diameter	≥3mm
Input Method	Finger or pen
Theoretical clicks	Unlimited
